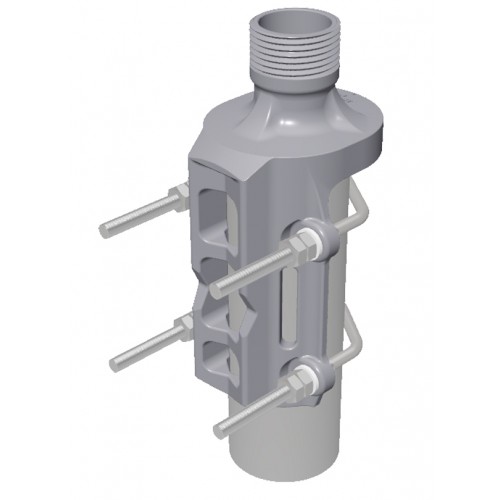

PRO LW-SS-1", stainless steel clamping foot for 16-54 mm pipes

Order number: 7000 00534900



FEATURES / ADVANTAGES



• With the universal mast mounting clamp LW-SS-1", all antennas that have been specially developed for mounting on 1" water pipes can be mounted on any type of horizontal or vertical mast support pipe, as long as the outer diameter of the pipe is between 16 and 54 mm.
• The mounting bracket is made of stainless steel and is therefore ideal for use in the marine sector.
• The 1" water pipe mounting system for antennas has established itself worldwide in the marine sector. The antennas are equipped with a rotating nut that fits on water pipes with 1" RG (G1" - 11) threads.
• The design of the clamp allows the downlead cable to be routed along either the inside or the outside of the mast tube.
• Available as an ATEX version when equipotential bonding is not achieved through the mounting bracket and a grounding kit is required.
• With the GP adapter (to be ordered separately), the LW-SS-1" can be used for GP antennas with GP heads.
• The LW-SS-1" mounting clamp is a member of a complete family of different mounting clamps for 1" tubular antennas. The complete range is shown below. The LW-SS-1" or one of these accessories can be used for the majority of installations.
