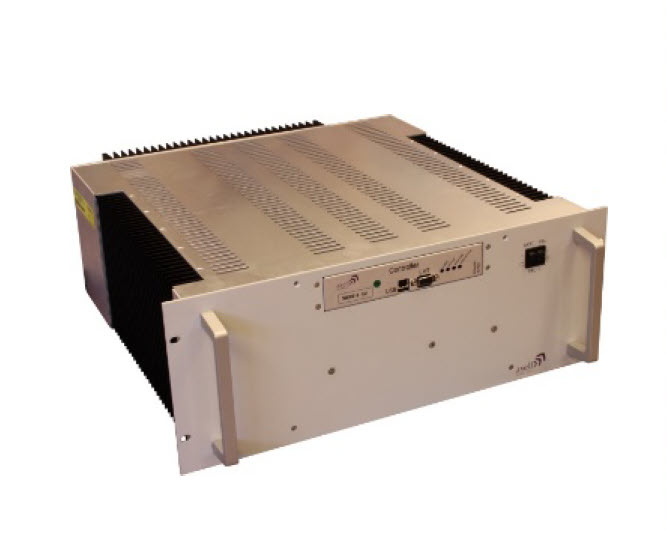

PBE D-BSR3604 TETRA booster, frequency range 380-385/390-395 MHz, 48 VDC, 4U, 19" housing

Order number: 7000 00752528



BSR 3604

Powerful, band-selective TETRA repeater



FEATURES/ADVANTAGES



• The BSR 3604 band-selective repeaters operate in the TETRA bands 380 to 470 MHz and are designed for use in trunked radio systems to distribute the RF signal throughout the area to be covered. Other bands are available on request up to 520 MHz.
• The BSR 3604 provides fast and easy coverage for applications inside buildings such as train stations, parking garages, power plants, shopping malls or other types of confined areas.
• The BSR 3604 is used as part of a system in which an off-air repeater is used in combination with the BSR 3604.
• The signal received from the off-air repeater is relayed via a coaxial cable to the BSR 3604 units, which are distributed throughout the building or area to be covered. The signals are then distributed by the BSR 3604 units via radiating cables or a distributed antenna system, ensuring sufficient coverage within the building.
• The BSR 3604 unit offers high output power and amplifies the signals with a gain of up to 55 dB.
